2007 Memorandum of Agreement
   Carmel River Reservoirs: Diversion and Release Schedule Assuming Critically-Dry Inflow Conditions
              (All Values in Acre-Feet, except as indicated)

    Jan-07 Feb-07 Mar-07 Apr-07 May-07 Jun-07 Jul-07 Aug-07 Sep-07 Oct-07 Nov-07 Dec-07 CY 2007
  Los Padres Reservoir
     Inflow 864 2,344 2,028 895 521 136 74 42 51 57 92 74 7,178
     Outflow
            Evaporation 4 8 27 32 48 34 34 28 20 12 6 3 256
            Spillage 196 1,781 1,386 0 0 0 0 0 0 0 0 0 3,363
            Release (Fish Ladder) 615 555 615 877 490 315 301 243 227 214 180 185 4,818
            Release (Outlet) 0 0 0 0 0 0 0 0 0 0 0 0 0
            Release (Notch) 0 0 0 0 0 0 0 0 0 0 0 0 0
     Total Storage
           Beginning of Month 1,520 1,569 1,569 1,569 1,555 1,538 1,324 1,063 834 638 469 375
           End of Month 1,569 1,569 1,569 1,555 1,538 1,324 1,063 834 638 469 375 260
  Between  Reservoirs
      Inflow 309 619 834 266 195 34 18 11 13 14 23 18 2,354
      Outflow
           Evapotranspiration 21 26 20 20 20 34 68 58 53 37 21 16 394
           Private Usage 2 2 2 5 7 8 8 8 6 5 2 2 59
  San Clemente Reservoir
     Inflow 1,097 2,927 2,813 1,118 658 307 243 187 182 186 180 185 10,083
     Outflow
            Evaporation 3 1 8 7 17 4 4 3 3 2 1 1 54
            Spillage 418 2,249 2,128 457 275 123 1 0 0 0 0 0 5,651
            Diversion (Filter Plant) 0 0 0 0 0 0 0 0 0 0 0 0 0
            Release (Valve) 0 0 0 0 0 0 0 0 0 0 0 0 0
            Release (Six Ports) 492 0 0 0 0 0 0 0 0 0 0 0 492
            Release ( Fish Ladder) 123 555 615 595 305 184 178 123 119 123 119 123 3,162
            Leakage 61 56 61 59 61 61 59 61 59 61 59 61 724
      Total Storage
           Beginning of Month 71 71 137 137 137 137 71 71 71 71 71 71
           End of Month 71 137 137 137 137 71 71 71 71 71 71 71
     Total Release 1,094 2,860 2,805 1,111 641 369 239 184 179 184 178 184 10,029
     Mean Daily Release in cfs  17.8 51.5 45.6 18.7 10.4 6.0 4.0 3.0 3.0 3.0 3.0 3.0
     Mean Daily Diversion in cfs 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
     Mean Daily Diversion in cfs (UCV Wells) 0.4 0.6 2.2 1.0 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5

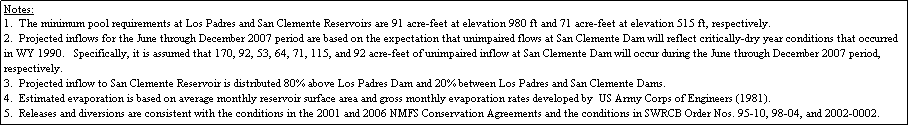

Text Box: Notes: 1. The minimum pool requirements at Los Padres and San Clemente Reservoirs are 91 acre-feet at elevation 980 ft and 71 acre-feet at elevation 515 ft, respectively. 2. Projected inflows for the June through December 2007 period are based on the expectation that unimpaired flows at San Clemente Dam will reflect critically-dry year conditions that occurred in WY 1990. Specifically, it is assumed that 170, 92, 53, 64, 71, 115, and 92 acre-feet of unimpaired inflow at San Clemente Dam will occur during the June through December 2007 period, respectively. 3. Projected inflow to San Clemente Reservoir is distributed 80% above Los Padres Dam and 20% between Los Padres and San Clemente Dams. 4. Estimated evaporation is based on average monthly reservoir surface area and gross monthly evaporation rates developed by US Army Corps of Engineers (1981). 5. Releases and diversions are consistent with the conditions in the 2001 and 2006 NMFS Conservation Agreements and the conditions in SWRCB Order Nos. 95-10, 98-04, and 2002-0002. 6. Bold values are actual values.
