2007 Memorandum of Agreement
 Carmel River Reservoirs: Diversion and Release Schedule Assuming Critically-Dry Inflow Conditions
            (All Values in Acre-Feet, except as indicated)

  Jan-07 Feb-07 Mar-07 Apr-07 May-07 Jun-07 Jul-07 Aug-07 Sep-07 Oct-07 Nov-07 Dec-07 CY 2007
Los Padres Reservoir
   Inflow 864 2,344 2,028 900 283 136 74 42 51 57 92 74 6,945
   Outflow
          Evaporation 4 8 27 32 27 34 34 28 20 12 6 3 235
          Spillage 196 1,781 1,386 273 0 0 0 0 0 0 0 0 3,636
          Release (Fish Ladder) 615 555 615 595 381 226 300 243 227 214 180 185 4,336
          Release (Outlet) 0 0 0 0 0 0 0 0 0 0 0 0 0
          Release (Notch) 0 0 0 0 0 0 0 0 0 0 0 0 0
   Total Storage
         Beginning of Month 1,520 1,569 1,569 1,569 1,569 1,444 1,320 1,060 831 635 466 372
         End of Month 1,569 1,569 1,569 1,569 1,444 1,320 1,060 831 635 466 372 257
Between  Reservoirs
    Inflow 309 619 834 280 71 34 18 11 13 14 23 18 2,244
    Outflow
         Evapotranspiration 21 26 20 20 74 63 68 58 53 37 21 16 477
         Private Usage 2 2 2 5 7 8 8 8 6 5 2 2 59
San Clemente Reservoir
   Inflow 1,097 2,927 2,813 1,123 371 189 242 187 182 186 180 185 9,682
   Outflow
          Evaporation 3 1 8 9 5 4 4 3 3 2 1 1 44
          Spillage 418 2,251 2,128 459 0 0 0 0 0 0 0 0 5,257
          Diversion (Filter Plant) 0 0 0 0 0 0 0 0 0 0 0 0 0
          Release (Valve) 0 0 0 0 0 0 0 0 0 0 0 0 0
          Release (Six Ports) 492 0 0 0 0 0 0 0 0 0 0 0 492
          Release ( Fish Ladder) 123 555 615 595 305 187 178 123 119 123 119 123 3,165
          Leakage 61 56 61 59 61 61 59 61 59 61 59 61 724
    Total Storage
         Beginning of Month 73 73 137 137 137 137 73 73 73 73 73 73
         End of Month 73 137 137 137 137 73 73 73 73 73 73 73
   Total Release 1,094 2,862 2,805 1,114 366 249 238 184 178 184 178 184 9,638
   Mean Daily Release in cfs  17.8 51.5 45.6 18.7 6.0 4.0 4.0 3.0 3.0 3.0 3.0 3.0
   Mean Daily Diversion in cfs 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
   Mean Daily Diversion in cfs (UCV Wells) 0.4 0.6 2.2 1.0 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5

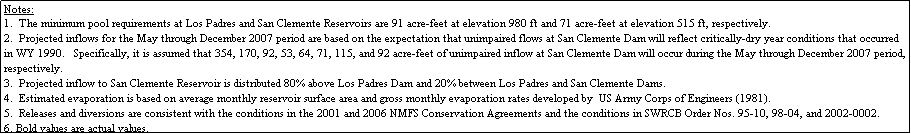

Text Box: Notes:
1.  The minimum pool requirements at Los Padres and San Clemente Reservoirs are 91 acre-feet at elevation 980 ft and 71 acre-feet at elevation 515 ft, respectively.
2.  Projected inflows for the May through December 2007 period are based on the expectation that unimpaired flows at San Clemente Dam will reflect critically-dry year conditions that occurred in WY 1990.   Specifically, it is assumed that 354, 170, 92, 53, 64, 71, 115, and 92 acre-feet of unimpaired inflow at San Clemente Dam will occur during the May through December 2007 period, respectively.
3.  Projected inflow to San Clemente Reservoir is distributed 80% above Los Padres Dam and 20% between Los Padres and San Clemente Dams.
4.  Estimated evaporation is based on average monthly reservoir surface area and gross monthly evaporation rates developed by  US Army Corps of Engineers (1981).
5.  Releases and diversions are consistent with the conditions in the 2001 and 2006 NMFS Conservation Agreements and the conditions in SWRCB Order Nos. 95-10, 98-04, and 2002-0002.
6. Bold values are actual values.
